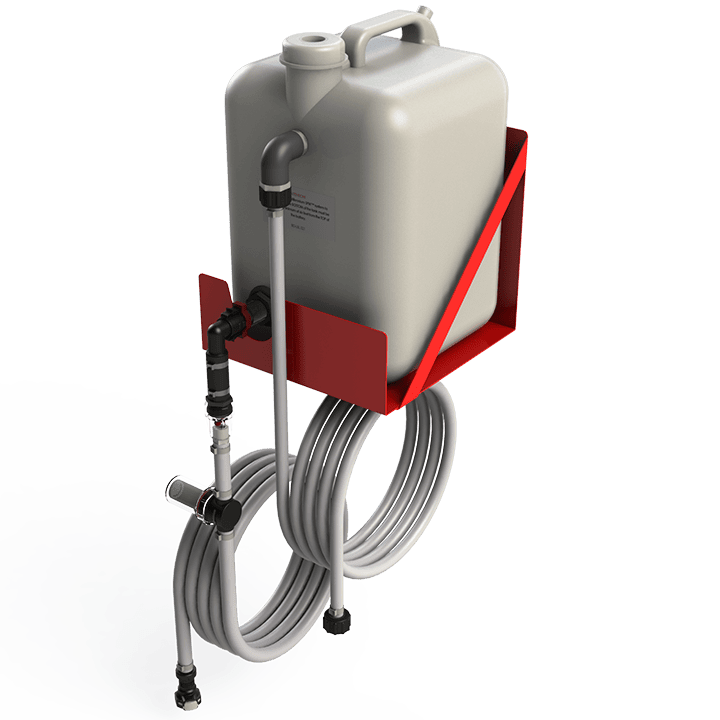

This version of the gravity tank may be placed on a shelf or used with a separate mounting bracket. Note that the bottom of the tank must be at a minimum of six feet above the top of the tallest batteries while watering. The 6 foot distance will ensure consistent water flow between 2-5 gallons per minute. Recommended to be refilled with deionized water the gravity tank is for use with batteries equipped with Millennium Evo or Pro-Fill systems.
Also available with an auto-refill option that allows you to connect the tank directly to a water source. Your tank will refill automatically with a float valve to ensure you never run out of water during your work. The bracket option will give you a pre-made shelving unit to house the tank ensuring a proper and secure fit while providing all the necessary hardware to mount.
Tank includes a handle for transporting to various watering locations or to be refilled. Once connected to a watering system red balls within the flow indicator will begin to spit signaling cells are being filled. As the red balls come to a complete stop all cells will be filled to the proper level and the couplers should be disconnected.
Instructions
Gravity Tank Tips and Tricks
Includes
- 5 Gal. Tank
- 11 ft. outlet hose (BA-MS-600)
- In-line strainer (BA-019)
- Flow Indicator (BA-FLW-60)
- Female coupler (BA-QDV-232 / CF12NV-50B)
- Mounting Bracket
- Mounting Hardware
- Auto-Refill from tank to spigot(3/4″)
