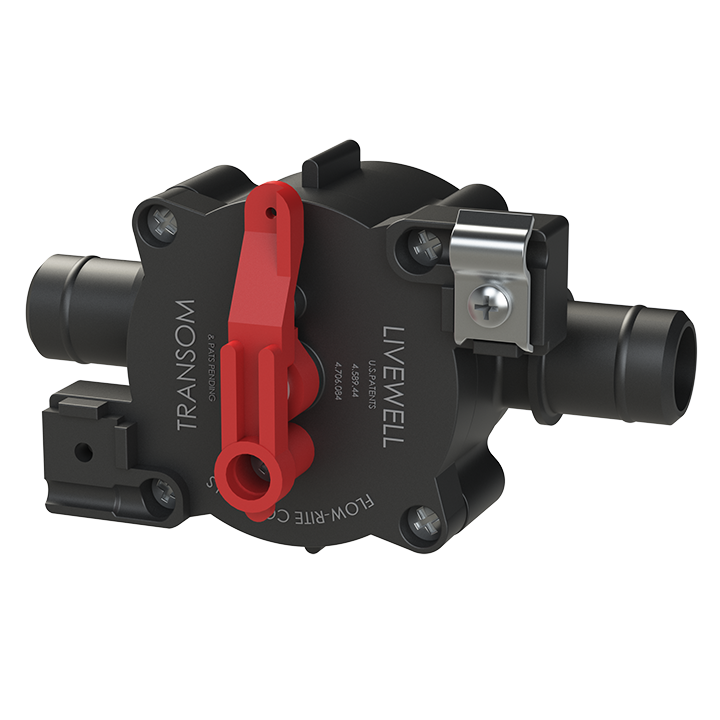

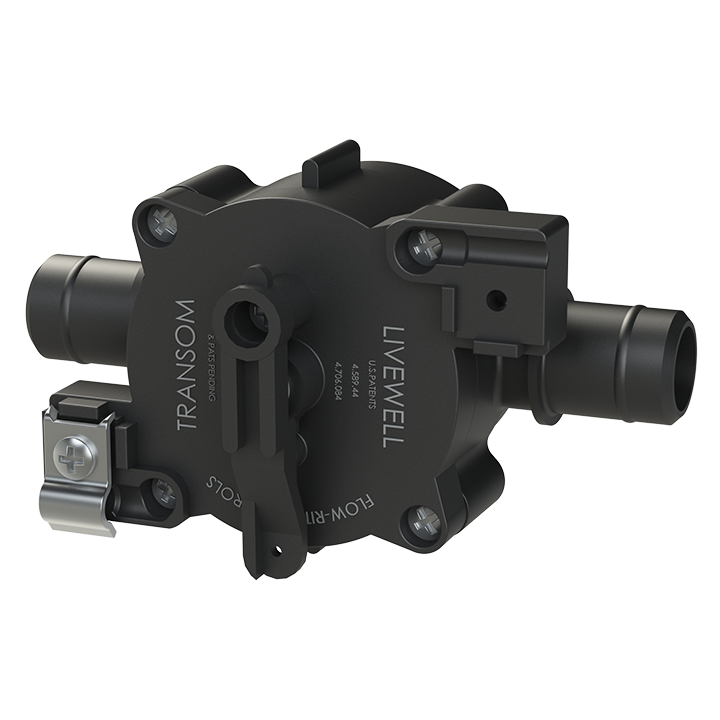

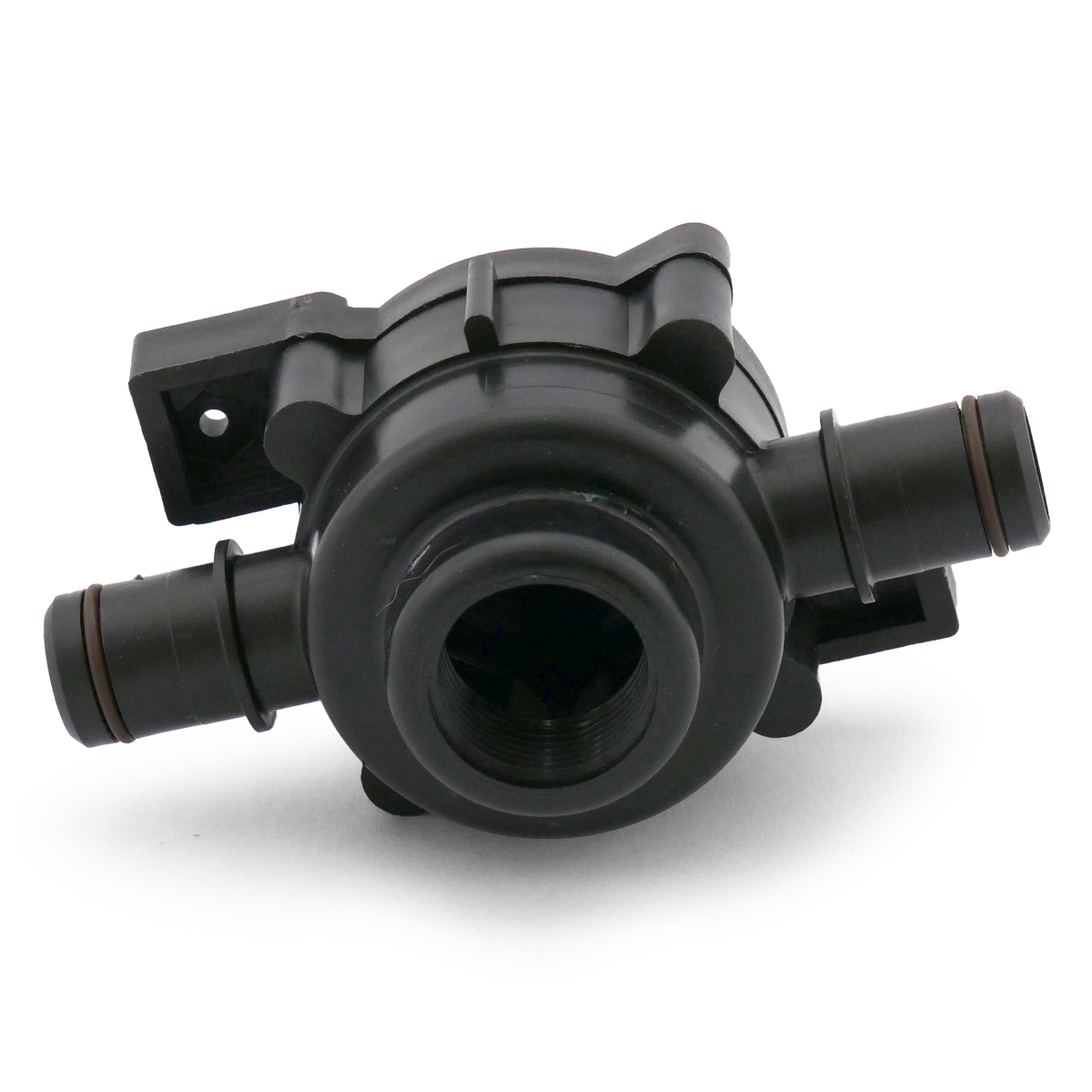

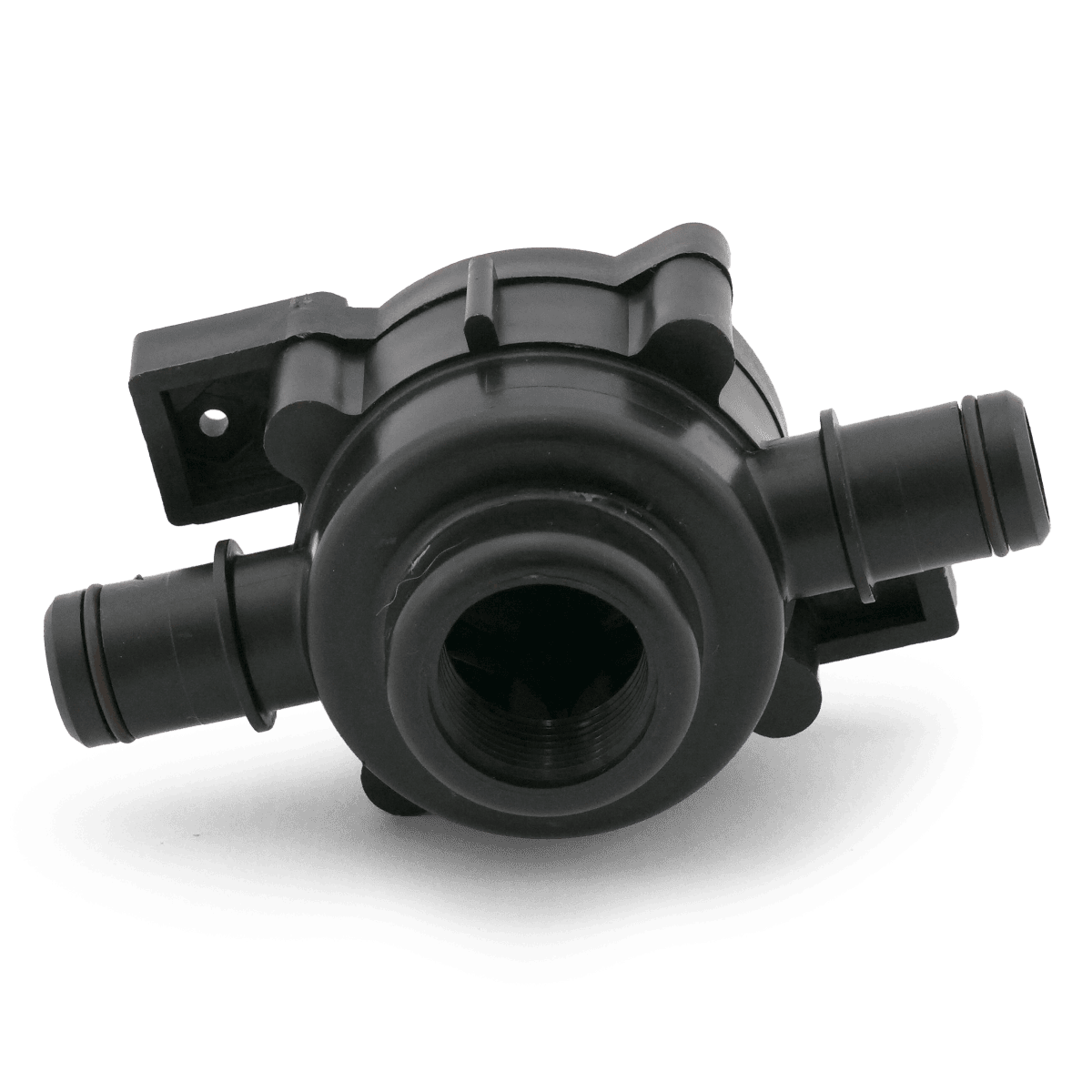

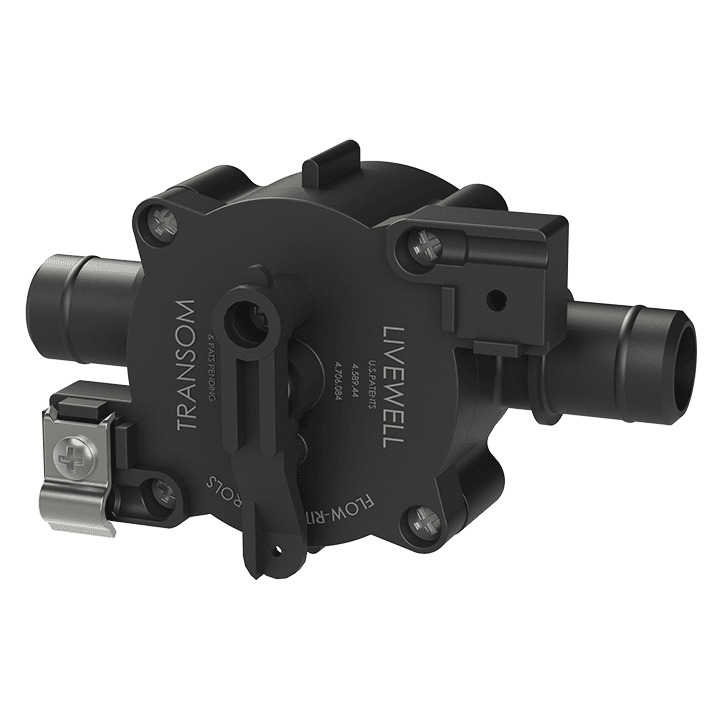

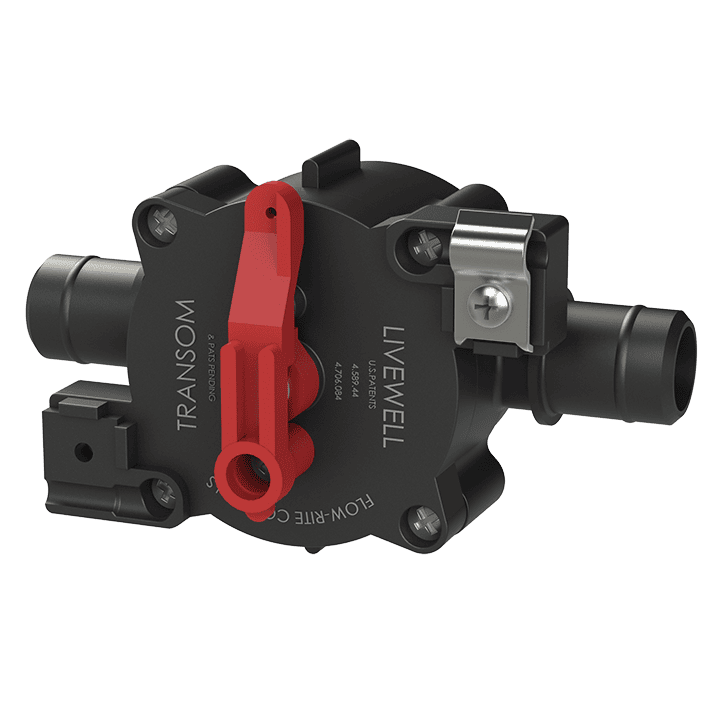

Flow-Rite’s System 4 Marine Control Valve is a versatile valve designed for various marine applications such as livewell systems, bilge pump systems, baitwell systems, and many more. This valve offers a simple and efficient way to control the flow of fluids in your marine systems.
The System 4 valve features a durable construction that can withstand harsh marine environments. It is made of high-quality materials that resist corrosion, UV rays, and chemicals. This valve is also designed to handle high-pressure fluid systems, making it a reliable choice for demanding marine applications.
The V4 valve allows a standard aerator pump to be mounted directly to the valve body for both filling and recirculation duties, thus eliminating the need for 2 separate pumps and additional plumbing. When in the “FILL” position, the valve will close the livewell drain side of the valve so the pump has free access to fresh outside water. Once the livewell is full, the valve is placed in the “RECIRC” position to close the drain and allow full recirculation of the livewell water. Occasionally returning to the “FILL” position will keep the livewell topped off and freshened. The “EMPTY” position allows gravity draining with the pump off.
Overall, the Flow-Rite System 4 Marine Control Valve is an excellent choice for marine applications where durability, reliability, and efficiency are essential. Whether you need to control the flow of fluids in your livewell system or bilge pump system, this valve is sure to meet your needs and exceed your expectations.
